Abaqus/CAE: Geometry Import and Meshing (2 day)

Abaqus/CAE: Geometry Import and Meshing (2 day)

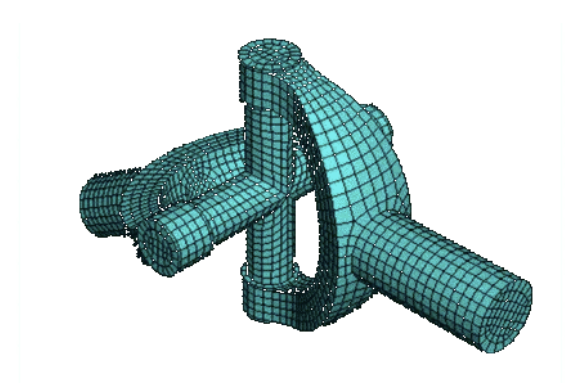

Real-world engineering commonly involves the analysis and design of complicated geometry. These types of analysis depend critically on having a modeling tool with a robust geometry import capability in conjunction with advanced, easy-to-use mesh generation algorithms. This course provides an in-depth look at several advanced Abaqus/CAE capabilities: CAD geometry import and repair, meshing and partitioning of complicated geometry. Both native and neutral geometry formats are discussed. An in-depth treatment of meshing techniques is also provided, including the use of virtual topology to ease the meshing of complicated geometry in the presence of small geometric features. The course consists of lectures, demonstrations and workshops.

Please select a date and enter the number of attendees below, before adding to cart.

$3,000.00

- +
SKU: TRN-PLM-SIM-CST-092-1-3 Category: Brand:

Description

Upon completion of this course you will be able to:

  • Import, edit, and repair CAD geometry.
  • Import and edit orphan meshes.
  • Use virtual topology to ease the meshing of complicated geometry.
  • Partition geometry to enable different meshing techniques.

Notes:

  • A Virtual Machine (VM) and the appropriate licenses will be provided for all classes. If you wish to use your own hardware, refer to the DS Certified Workstations and ensure the relevant products and licenses are properly installed prior to the class start.
  • The class may be cancelled or postponed based on enrollment, refer to the Refund and Cancellation Policy for details.

Additional information

Audience

This course is recommended for users with a basic knowledge of Abaqus/CAE who wish to become more proficient with the product.
Prerequisites

None
Portfolio

SIMULIA CST
Available Classes

August 25-26, October 14-15
Duration

2 Days
Time Block

08:00 – 17:00 Central Time (CT)
Virtual Machines

A Virtual Machine (VM) will be provided.
