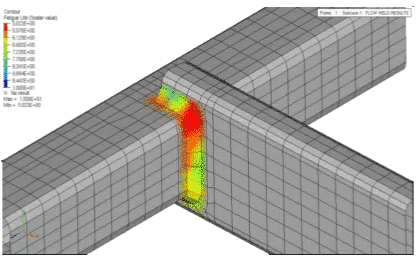

Fatigue of Welds in fe-safe (1 day)

This course covers simulating the number of cycles till fatigue failures at welds in welded structures. The methods are based on predicting a crack through a certain thickness, in welded structures at the welds (toe, root, throat, etc.; failure mechanisms in welds can be included). Both classification methods (such as BS5400 and BS7608) and structural stress methods (such as the Verity module in fe-safe) are included. Examples are provided using FEA output models run in Abaqus, Ansys or Nastran. Not included is temperature-dependent weld fatigue, or weld processes such as friction stir welding or similar. Non-structural joining such as solder is not covered, nor is nonmetallic joining such as adhesive bonding.

Please select a date and enter the number of attendees, before adding to cart.

$3,000.00

Upon completion of this course you will be able to:

Understand modeling requirements for line welds and spot welds
Set up FEA models for weld fatigue and import results into fe-safe
Use BS5400 Weld Finite Life algorithm in fe-safe
Define weld lines for structural stress calculations
Use the Verity module in fe-safe based on structural stress calculations
Select a material for fatigue analysis using structural stress methods

Notes:

A Virtual Machine (VM) and the appropriate licenses will be provided for all classes. If you wish to use your own hardware, refer to the DS Certified Workstations and ensure the relevant products and licenses are properly installed prior to the class start.
The class may be cancelled or postponed based on enrollment, refer to the Refund and Cancellation Policy for details.

Audience

Simulation Analysts

Prerequisites

None

Portfolio

SIMULIA Abaqus

Available Classes

September 2

Duration

1 Day

Time Block

08:00 – 17:00 Central Time (CT)

Virtual Machines

A Virtual Machine (VM) will be provided.
